Vertical machining center : 1997 Cincinnati ARROW 750:
Perfect WORKING condition! Want to see it running?, give me a call!

Model: Arrow 750
SNA: 7043A00-960585
Control: #51A21001Y-1392
KVA: 25
Diagram: 91202971
91202949
60 AMPS
Manufactured year: 1997
equipped with :

- Acramatic 2100 PC control version 2.1

- X-Axis travel =  30"
- Y-Axis travel =  20"
- Z-Axis travel =  30"
- A-Axis =  continuous
360


- RPM: 8000
- POWER: 10 HP
-
continuous 4th axis / rotary table
- 21 automatic tool stations
- CAT 40
- OS: Windows NT 3.51



- 540MB HD
- LogiTech trackball mouse
- Keyboard
- Touch-screen
- Enabled network TCP/IP with LinkSYS 16-port hub
- Floppy drive
- RS232 DNC



SPINDLE GAUGE LINE TO WORK SURFACE
MINIMUM: 5"
MAXIMUM: 25.1"
WORK SURFACE (L X W): 37.43" X 20.5"
MAXIMUM WORKLOAD: 1,650 LBS.
RAPID TRAVERSE (X-Y-Z): 1180 IPM
FEED RATE (X-Y-Z): 590 IPM (MAX.)
DIGITAL VECTOR SPINDLE DRIVE
SPINDLE TAPER: NO. CAT40
SPINDLE RANGE: 60 - 8000 RPM
POWER (MAX.): 17 HP
(CONTINUOUS): 10 HP
TOOLCHANGER CAPACITY: 21 TOOLS
MAX. TOOL WEIGHT: 15 LBS.
MAX. TOOL DIA. (FULL STORAGE): 3.14"
MAX. TOOL DIA. (ALT. STORAGE): 6.3"
MAX. TOOL LENGTH: 15"
TOOL CHANGE TIME : 6 SECONDS

MACHINE WEIGHT: 7260 LBS.
WIDTH: 110"   DEPTH: 82.7"  HEIGHT:106.3"

Weight = 7260 lbs (3300 kg)

.

Customer is responsible for all shipping and rigging costs

US$ 19,900.00
for VMC +
continuous 4th Axis /rotary table/+ 21 Tool Holders

Click here for the generic invoice and complete list what is included

Click here for the generic invoice and complete list what is included without 4th axis/ rotary table




F
or the rest or more info contact Mike at:
330.389.4148

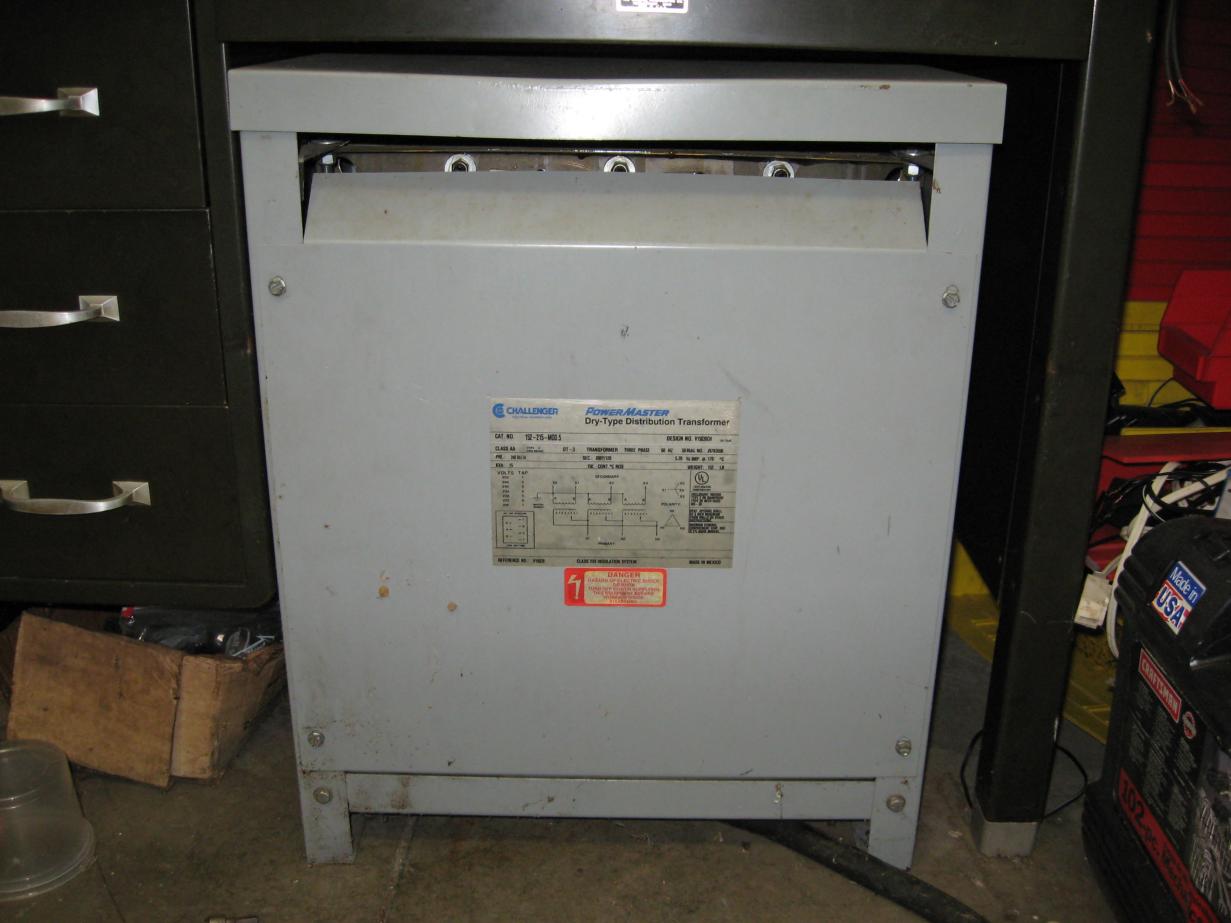

- Dry-Type distribution Transformer

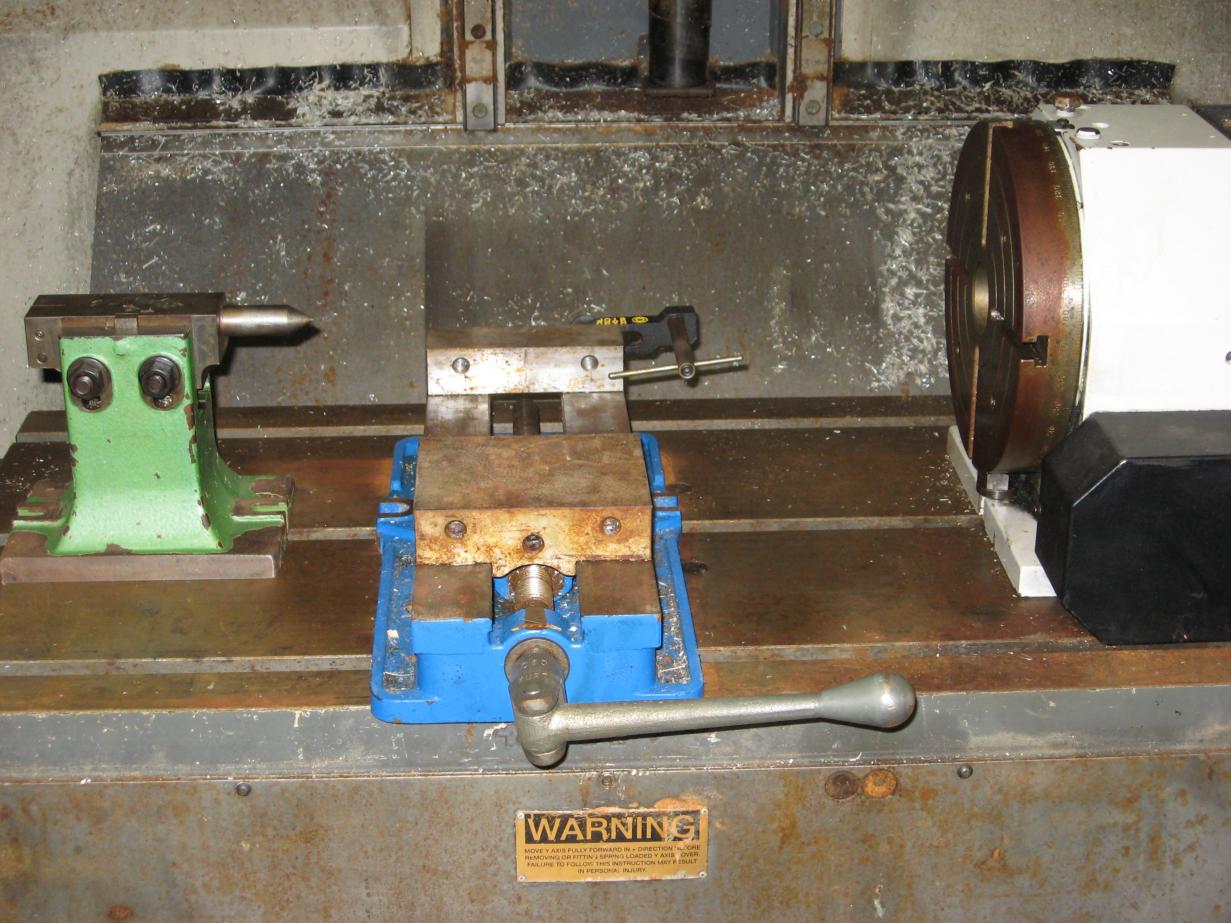

- 4th axis rotary table DL-10B Troyke SerialNo: 5146-11
- 4th axis rotary table 5" adjustable tailstock
- 24 VALENITE tool holders
- Vise - KURT 6"
- VMC Acramatic manuals & tips and tricks for Acramatic 2100 PC control Parts Manual

Operating manual

Service Manual

An additional  3Com network card
(
for A2100 control)
A2100 control is already on network this is an additional network card, hard to find
An additional Real Time (RT) processor board (brand new)
- Load of Cutting tools




- Work-holding fixture blocks
- clamping sets
(3 complete sets)

- Magnetic vise
- Big Safe-like metal cabinet
Backup hardrives
10+ IDE 540 MB and 1.7 GB HardDrives as a backup


Backup CD for A2100 control
Two DriveImage v4 floppies to restore CD image file With the harddrives, cd and this small DriveImage application you are set on software side.
LinkSys 16 port ethernet 10/100 Auto-Sensing Hub
(connect up to 16 computers to Acramatic 2100 control)
RS232 Mini-Tester
Parallel Set 1/2"
Rotary table Chuck
- Miscellaneous   For Parts

Engraving Mini Drill 18000 RPM x 3
(Three mini drills)

Collets + collets holder
Dead blow hammer
HARDSTOP
CLICK ON THE LINK ABOVE FOR MORE INFO
(4 complete sets)

- Tool cabinet

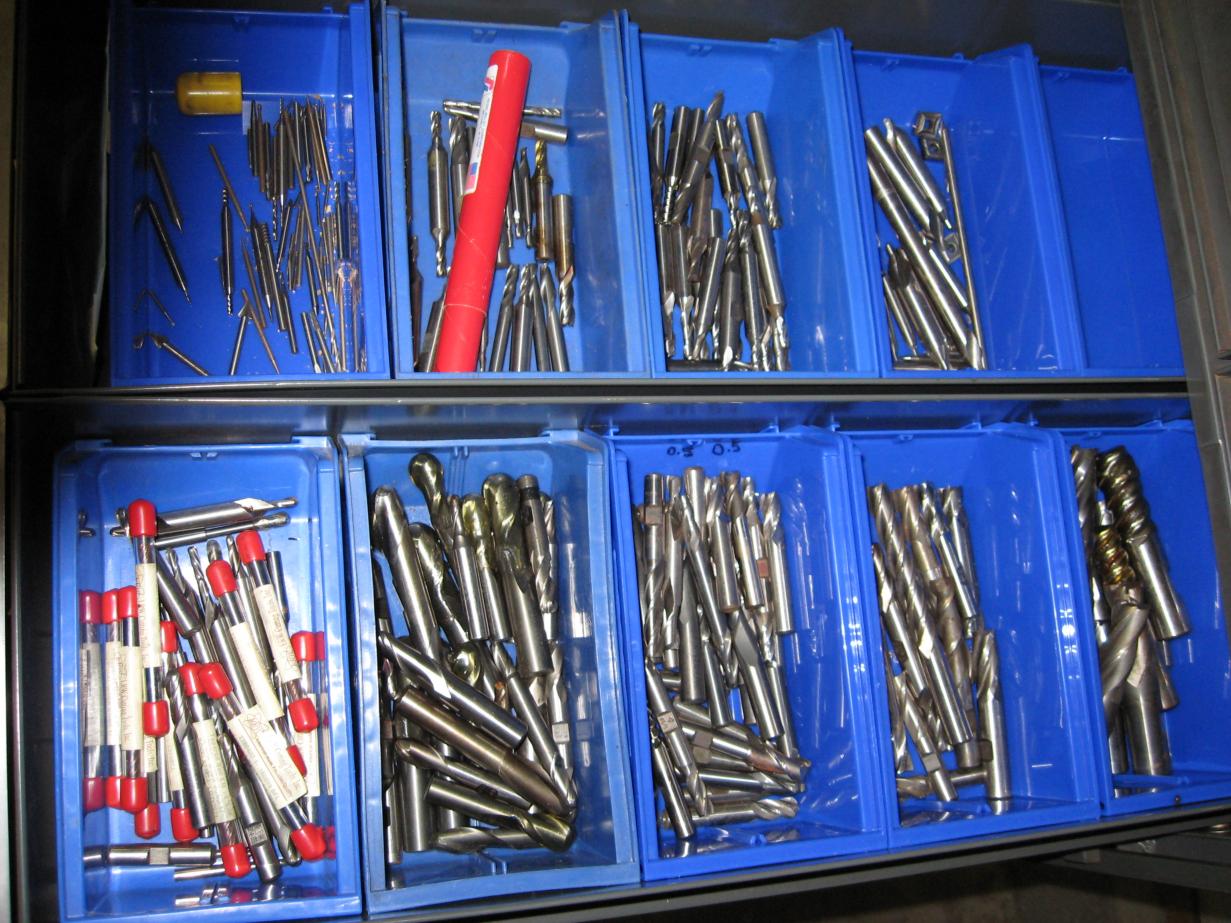

Tool storage with used cutting tools
Plastic Bins (20 - 30 pcs)
Magnetic Base
Practical Shop Mathematics
Engineering Graphic Design - book
- AutoCad 14-2000 books
Craftsman tool box
An older Craftsman tool box


For more info contact Mike at:
330.389.4148
